Grosse karusselldrehmaschinen
Baureihe AS - einzelständer (mm 6500 - mm 18000)

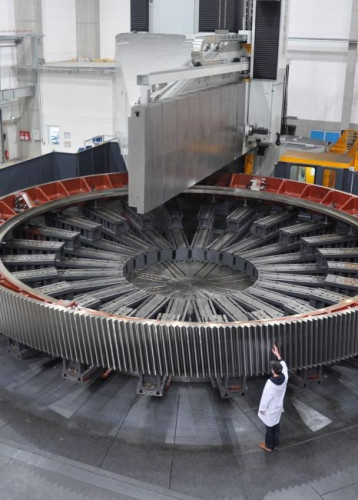

Die PIETRO CARNAGHI Karussellmaschinen der Baureihe AS sind als extrem steife Einzelständermaschinen konstruiert.
Diese Bauweise ermöglicht die Bearbeitung von sehr grossen Werkstückdurchmessern.
Die AS Maschine besteht aus einer Basiseinheit mit Planscheibe, integrierter Hauptantriebsspindel und dazugehörendem Getriebe und einem separatem Ständer mit höhenverstellbarem Auslegerarm. (Optional kann die Planscheibe auch über hydrostatische Führungen verfahren werden.)
Durch jahrzentelange Erfahrung auf dem Gebiet der Grossteilbearbeitung (AKW und Raumfahrt) wurde ein ausgereiftes System zur mechanischen Kompensation des Auslegers und des Ständers entwickelt.
Drei verschiedene Kompensationszylinder werden gleichzeitig entsprechend geregelt um geometrische Veränderungen der Bauteile, hervorgerufen durch Bewegungen grosser Massen an den Maschinenachsen, zu kompensieren.
Alle Maschinenelemente sind über die finite Elemente Methode konstruiert, thermisch behandelt und spannungsfrei.
Technische Daten:
| AS 65 T/TM |
AS 80 T/TM |
AS 100 T/TM |
AS 120 T/TM |
AS 140 T/TM |
AS 160 T/TM |
AS 180 T/TM |
||
|---|---|---|---|---|---|---|---|---|
| Max. turning diameter | mm | 6500 | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 |
| Table diameter | mm | 6000 | 6500 | 8000 | 8000 | 10000 | 10000 | 10000 |
| Standard weight | t | 200 | 200 | 200 | 200 | 350 | 350 | 350 |
| Max. allowable weight | t | 250 | 250 | 350 | 350 | 500 | 500 | 500 |
| Max. RPM | rpm | 60 | 60 | 40 | 40 | 35 | 35 | 35 |
| Turning power | kW | 150 - (230) - (300) | ||||||
| Turning height: fixed crossrail | mm | 1500 | ||||||
| Turning height: movable crossrail | mm | 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000 | ||||||
| Ram section | mm | 350 x 350 - (400 x 400) - (500 x 500) - (600 x 600) | ||||||
| Ram stroke Z axis | mm | 1500 - (2000) - (2500) - (3000) - (3500) - (4000) | ||||||
| Milling power | kW | 40 / 60 / 71 /100 | ||||||
| Max. RPM | rpm | 2500 - 3000 (6000) | ||||||
| Rapid feeds X-Z-axes | mm./min | 15000 | 10000 | |||||

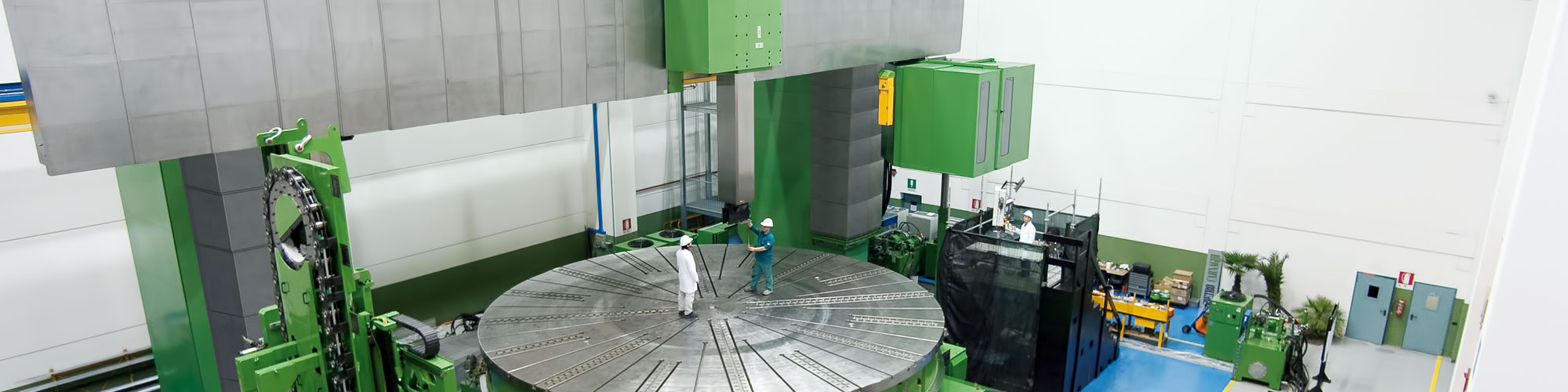

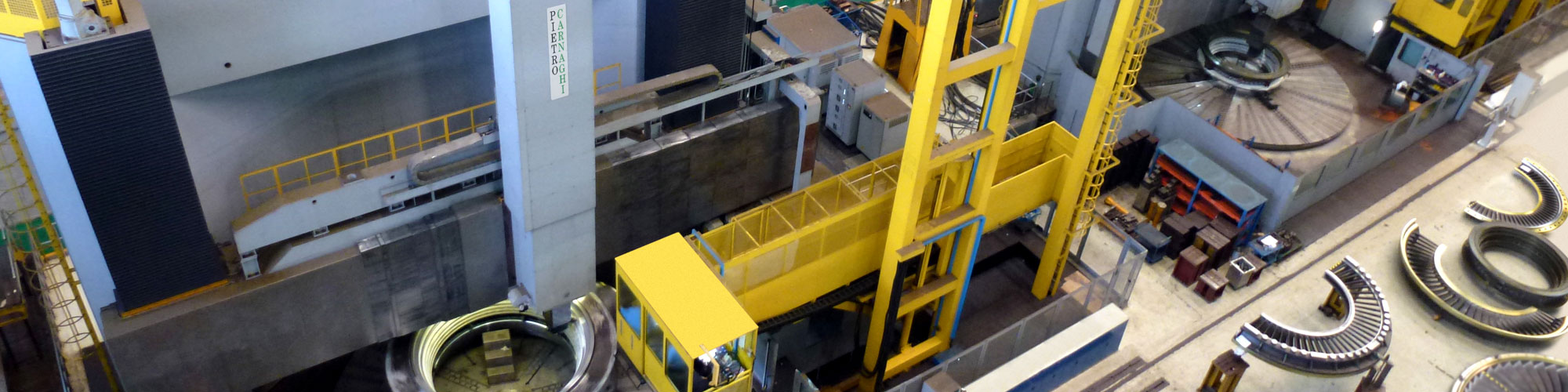

Galerie
